Introducing Mermaid Sequence Diagrams

ToDiagram now supports Mermaid Sequence Diagrams.

Sequence diagrams are useful when the order of messages matters. They help you explain how a request moves between people, services, and systems over time.

If you already use Mermaid in docs or pull requests, you can now use the same sequence syntax directly in ToDiagram.

Where This Helps

• API and auth flows: Show request/response order clearly.
• Microservice communication: Trace calls across services.
• Event-driven workflows: Document async handoffs and callbacks.

Example

sequenceDiagram
    participant Client
    participant APIGateway as API Gateway
    participant AuthService as Auth Service

    Client->>APIGateway: Request /data
    APIGateway->>AuthService: Validate Token
    AuthService-->>APIGateway: Token Valid
    APIGateway-->>Client: 200 OK (Data)

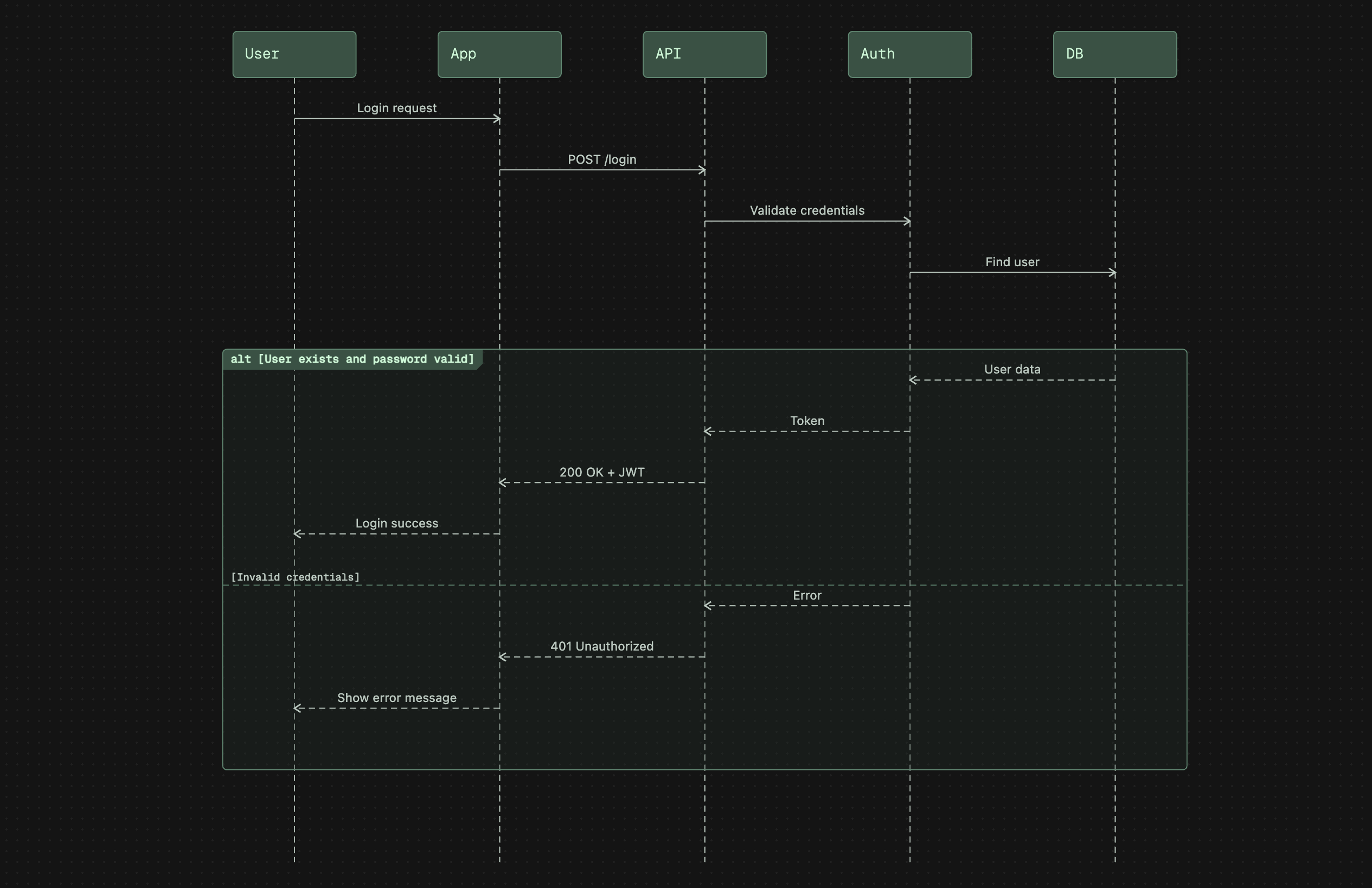

Mermaid sequence diagram rendered in ToDiagram

How To Use It

1. Open the ToDiagram editor.
2. Select Mermaid format.
3. Paste your sequenceDiagram.
